Thermo Scientific UItimate HPG-3200BX Binary Pump Semi-Preparative

Thermo Scientific UItimate HPG-3200BX Binary Pump Semi-Preparative

$3,695.00 $3,995.00

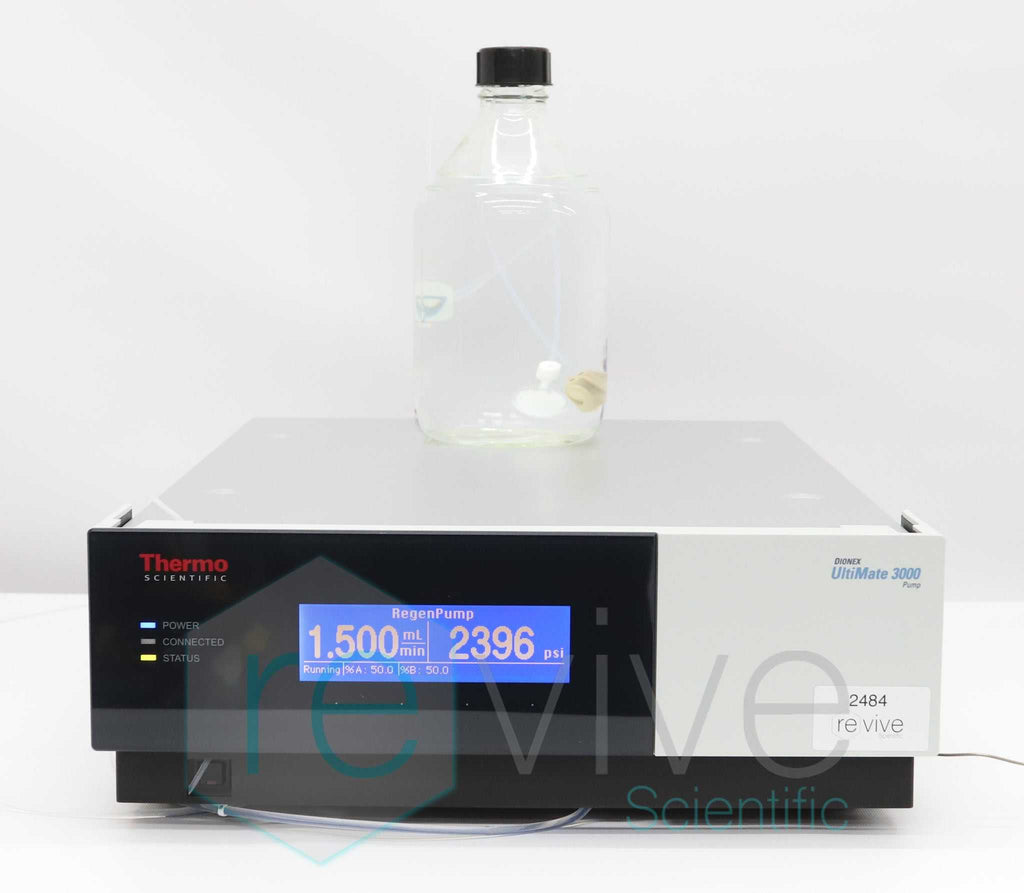

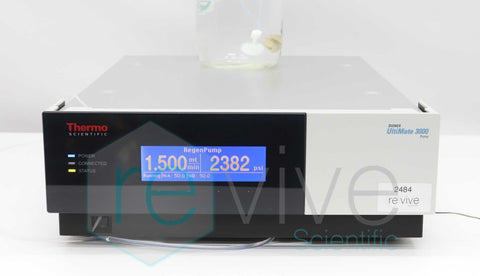

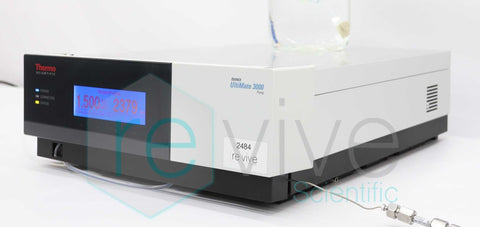

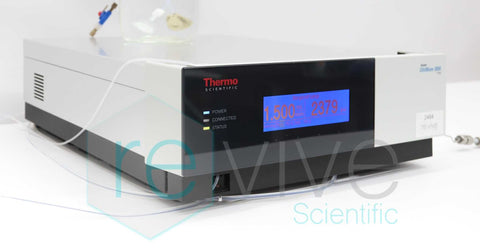

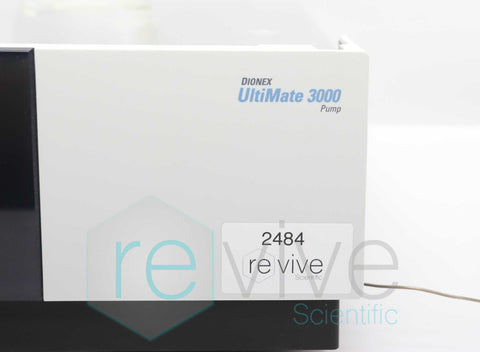

This Thermo Dionex UltiMate 3000 HPG-3200BX has been fully tested, inspected and verified to be in great working condition.

Warranty: 90 Days

Type: Biocompatible Binary Semi-Preparative Pump

Model: HPG-3200BX

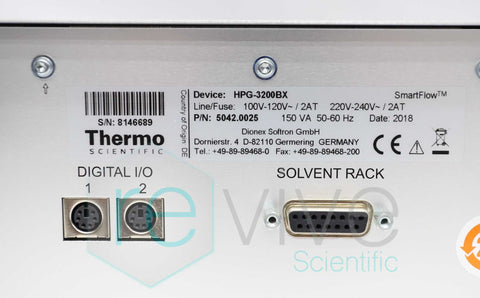

Part No: 5042.0025

Includes: Thermo Dionex HPG-3200BX Binary Pump, Power Cord & Inlet Hoses

Recommended Use: Purify biological compounds in the microgram to lower-milligram range quickly and accurately with the Thermo Scientific™ UltiMate™ HPG-3200BX Biocompatible Binary Semi-Preparative Pump. Binary high-pressure proportioning offers gradient accuracy and precision. Maximize your flow rate depending on your application. This pump supports operating pressures of up to 16.5 MPa (2400 psi/165 bar) at up to 30mL/min.; 13.5 MPa (1950 psi/135 bar) at 50mL/min. For isocratic applications, Double Flow mode enables flow rates of up to 100mL/min.

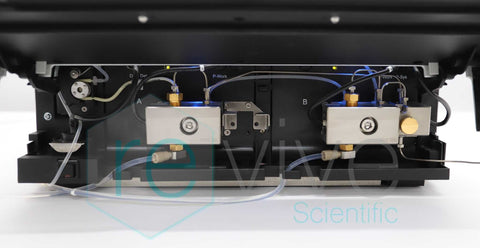

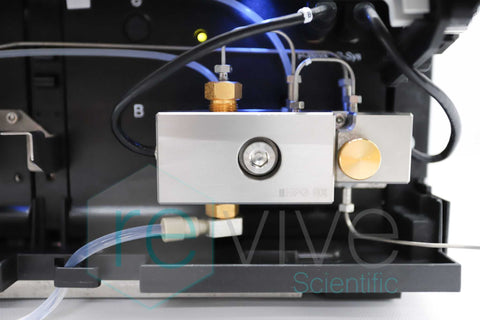

  • Serial dual-piston operating principle for outstanding flow rate accuracy and precision across the entire flow rate range
  • Wide operating flow rate range from 0.5 mL/min to 50 mL/min
  • Support  operating pressures of up to 165 bar (2400 psi) at up to 30 mL/min; 135 bar (1950 psi) at 50 mL/min
  • Double Flow mode enables flow rates of up to 100 mL/min for isocratic applications
  • Binary high-pressure proportioning for best-in-class gradient accuracy and precision
  • SmartFlow™ technology automatically ensures optimal chromatographic performance at any operation condition
  • Automatic compressibility compensation, no manual solvent setting needed
  • Active rear-seal wash and floating pistons for maximum seal lifetime


Flow Accuracy ±0.1% at 3 mL/min typically ±0.1% (at 25 mL/min)
Flow Precision <0.05% RSD or <0.01 min SD, whichever is greater
Gradient Formation High-pressure proportioning
Max. Flow Rate 50.0 mL/min.
Pressure Range 2 to 16.5 MPa up to 30 mL/min; 2 to 13.5 MPa up to 50 mL/min
GLP Features Full support of Thermo Scientific Dionex AutoQ instrument qualification, qualification status and system wellness monitoring. All system parameters are logged in the Chromeleon Audit Trail.
Gradient Delay Volume 800-1550 µL
Default: 800 µL
I/O Interfaces 2 digital inputs, 2 relay outputs
Min. Flow Rate 0.001 mL/min.
No. of Eluent Lines 2
Operating Principle Serial dual-piston
Pressure Ripple Typically: <0.2 MPa or <1% whichever is greater
Proportioning Accuracy ±0.2% (full scale)
Proportioning Precision < 0.2% SD
Unit Size Each

Product ID # 2484
