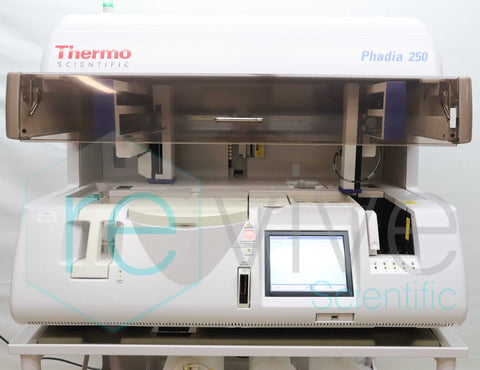

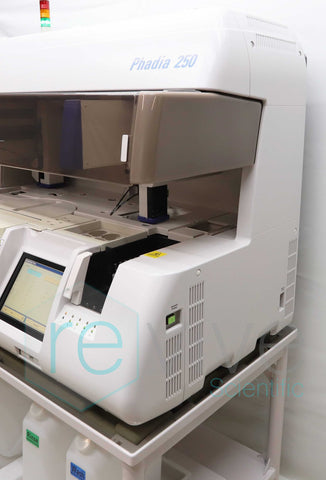

Thermo Scientific Phadia 250 Allergy Testing Instrument

Thermo Scientific Phadia 250 Allergy Testing Instrument

$11,980.00 $14,975.00

This Thermo Scientific Phadia 250 has been fully cleaned, decontaminated, tested, inspected and verified to be in great working condition.

60 Day Warranty!

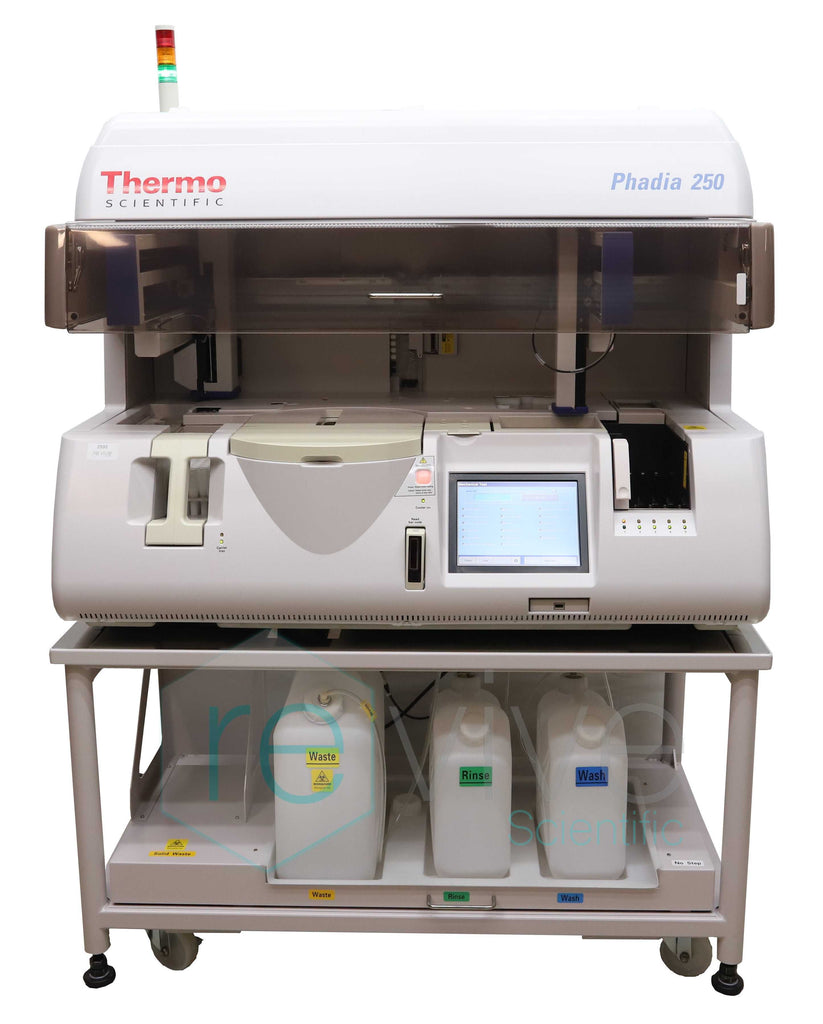

Includes: Thermo Scientific Phadia 25, Waste Rinse & Wash Containers, Training Program Workbook, Per-Work Training Packet, User Manual, Power Cord & Everything Else Shown!

BROCHURE


About:

The Phadia 250 instrument is one of the most versatile instruments available for testing to aid in the diagnosis of allergy and autoimmunity conditions. With the fully automated Phadia 250 instrument, laboratories can run automated EliA™ and ImmunoCAP™ tests with random access in a variety of workflow settings. The Phadia 250 instrument, together with the large portfolio of ImmunoCAP and EliA tests, delivers the flexibility you need to adapt quickly and meet your clinicians’ evolving demands.

Performance Specs:

Automation:Automated dispensing, processing and measuring. Full traceability of samples and reagents

Capacity: ImmunoCAP: 60 test results/hour EliA: 60 test results/hour

Patient sample capacity:  10- position sample rack: 50 samples 16- position sample rack: 80 samples

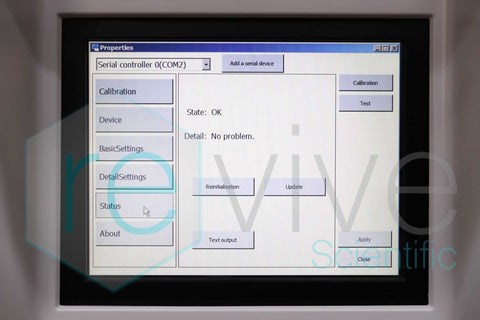

Software: Phadia Prime software

Connectivity: Laboratory Information System, (LIS) Laboratory Automation Systems,  (LAS)* Phadia LabCommunity

Sample dilutions: Yes

Reflex testing: Yes

Onboard carrier storage: Max 180 carriers at 2-8°C

Onboard reagent storage: Yes

Calibration curve stability: 28 days

Description: Continuous random access immunoassay systems

Environmental requirements (ambient): Operational temperature: 18-32°C Air humidity: 10-85 % relative humidity, non-condensing Maximum altitude: 3000 m Allowed temperature change: 2°C / hour\

Sound level:  ≤ 65 dBA at 1 m distance

Dimensions: (H x W x D) 1850 x 1270 x 760 mm

Space requirements: (including service area) 8 m2

Weight: 220 kg

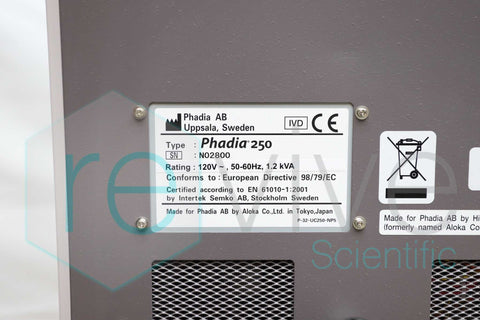

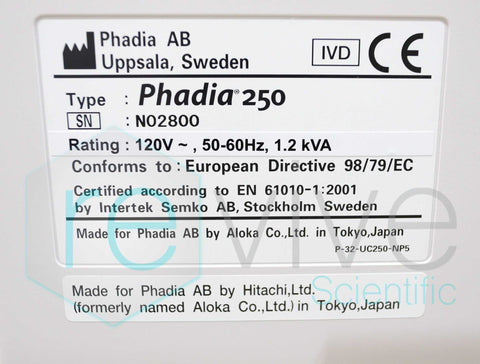

Electrical requirements: 100 V, 120 V, 220 V, 230 V, 240 V ±10%, 50/60 Hz (±2 Hz)

Power consumption: Average 0.55 kVA, Max 1.2 kVA

Processing chamber temperature: 37°C

Barcode symbology: Code 39, Code 93, Code 128, Codabar (NW-7), COOP 2 of 5, EAN-8, Industrial 2 of 5, Interleave 2–5

Sample barcodes: Length ≤ 70 mm Density: ≥ 10 mil

Sample tube dimension for sample racks: 10- position sample rack: Height 50-110 mm, Diameter 10-17 mm 16- position sample rack: Height 50-110 mm, Diameter 10-13.0 mm
