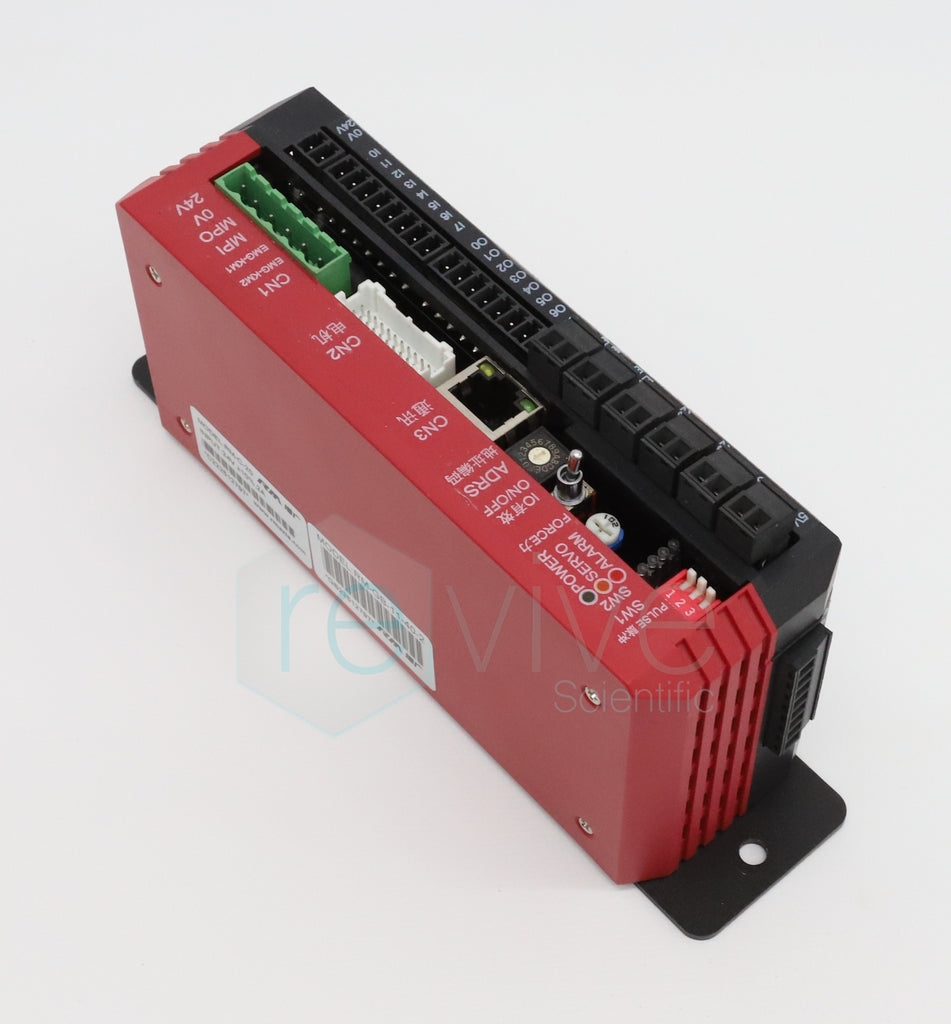

RobustMotion RM-C-20 Integrated Controller RM-GB-11-40-2
This RobustMotion control panel has been fully tested, inspected and verified to be in great working condition. It came from a prototype handler that was no longer needed.
Condition: Good, working
Warranty: 30 Day Warranty!

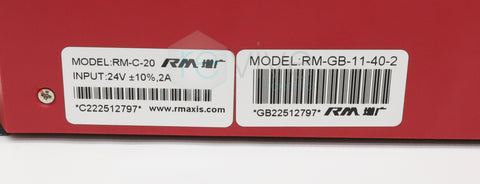

Model: RM-C-20 RM-GB-11-40-2
The RobustMotion RM-C-20 is a compact, single-axis motion controller designed for precise operation of compatible electric actuators, grippers, and automated positioning systems. Featuring integrated drive and control functions, the RM-C-20 supports I/O, pulse, and Modbus RTU communication for flexible integration into industrial automation equipment.
Operating on 24 VDC with a 2A drive current, the controller provides reliable motion control for laboratory automation, robotics, assembly systems, and industrial machinery.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | RobustMotion |
| Model | RM-C-20 |
| Product Type | Electric Actuator Motion Controller |
| Number of Axes | 1 |
| Rated Voltage | 24 VDC ±10% |
| Drive Current | 2 A |
| Control Methods | I/O, Pulse, Modbus RTU |
| Digital I/O | 16 Inputs / 16 Outputs |
| I/O Type | Optocoupler Isolated, NPN |
| Maximum Pulse Frequency | 200 kpps (24V) / 500 kpps (5V) |
| Status Indicators | Red, Yellow, Green LEDs |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | ≤85% RH, Non-Condensing |
| Protection Rating | IP20 |
| Cooling Method | Natural Convection |
| Dimensions (L × W × H) | 190 × 77 × 48.75 mm |
| Weight | 0.4 kg (0.88 lbs) |
Key Features
-
Single-axis electric actuator control
-
24 VDC operation with 2A drive current
-
Supports I/O, pulse, and Modbus RTU control
-
Optically isolated digital inputs and outputs
-
Compact design for industrial automation
-
LED indicators for operating status
-
Compatible with select RobustMotion electric actuators and grippers
Revive ID # 2724
