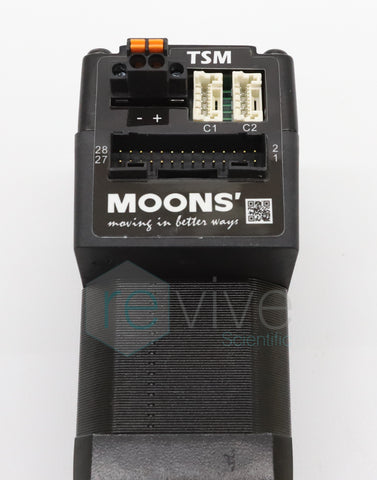

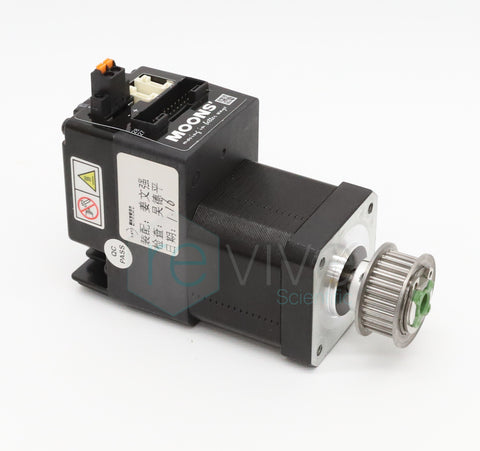

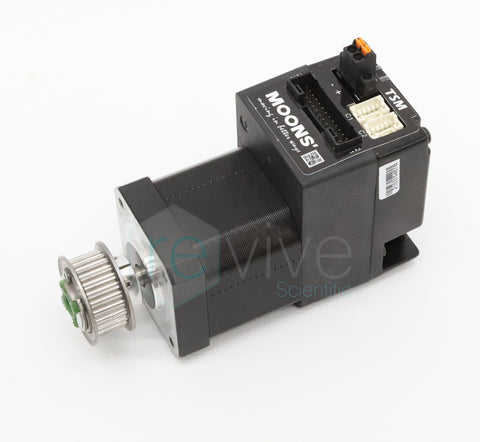

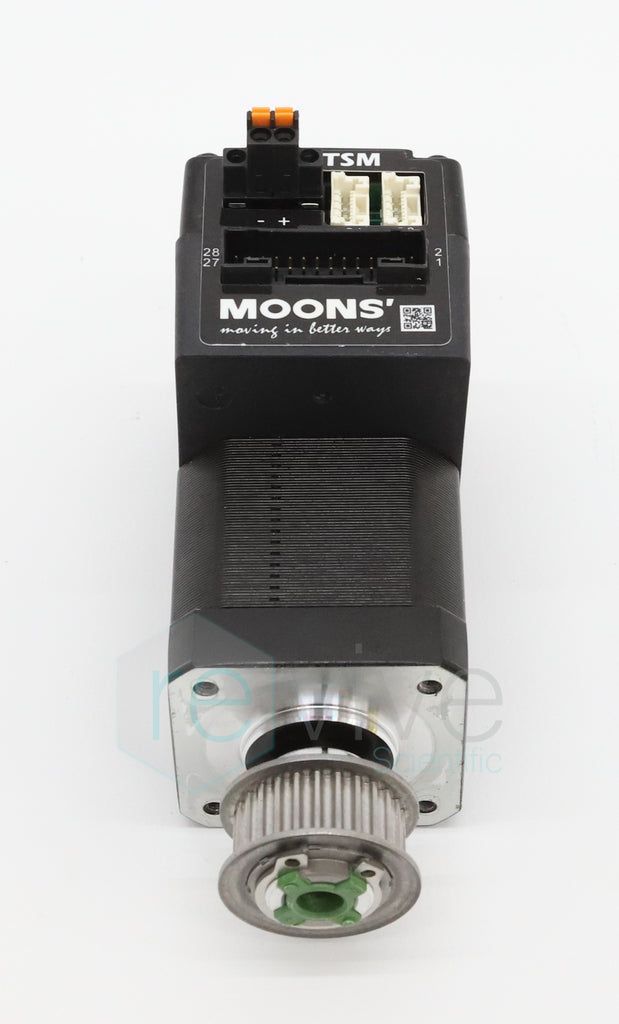

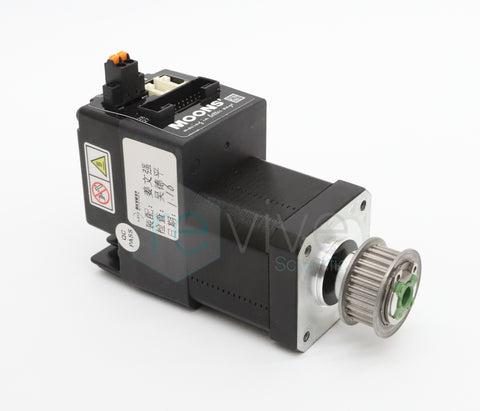

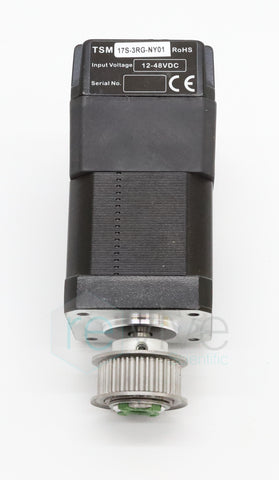

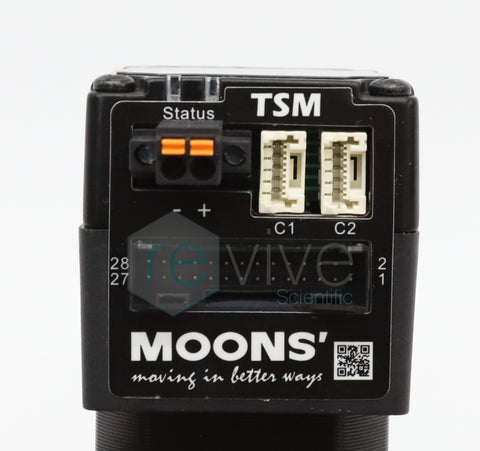

Moons TSM 17S-3RG Stepper Servo Motor NEMA17
This Moons TSM 17S-3RG NY01 has been fully tested, inspected and verified to be in great working condition. It was removed from a prototype handler that is no longer needed
Condition: Used, working
Warranty: 30 Day Warranty!
Product ID # 2728
From Manufacturer:
The MOONS' TSM17S-3RG is a compact NEMA 17 integrated step-servo motor designed for precision motion control and industrial automation. Combining a stepper motor, servo drive, and high-resolution encoder, the TSM17S-3RG provides accurate closed-loop positioning, smooth operation, and reliable performance.
Featuring RS-485 communication, advanced vector current control, and multiple operating modes, this motor is ideal for laboratory automation, robotics, precision positioning, and automated machinery.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | MOONS' |
| Model | TSM17S 3RG |
| Motor Type | Integrated Step-Servo Motor |
| Frame Size | NEMA 17 |
| Holding Torque | 0.52 Nm (74 oz-in) |
| Supply Voltage | 12–48 VDC |
| Maximum Speed | 3,000 RPM |
| Control Modes | Pulse, Velocity, SCL |
| Communication | RS-485 |
| Encoder Resolution | 20,000 Counts/Revolution |
| Digital Inputs | 8 |
| Digital Outputs | 4 |
| Analog Inputs | 1 |
| Shaft Diameter | 6 mm |
| Motor Length | 83.5 mm (3.29 in) |
| Frame Dimensions | 42 × 42 mm |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 40°C |
| Weight | 0.52 kg (1.15 lbs) |
| Certifications | CE, RoHS |
