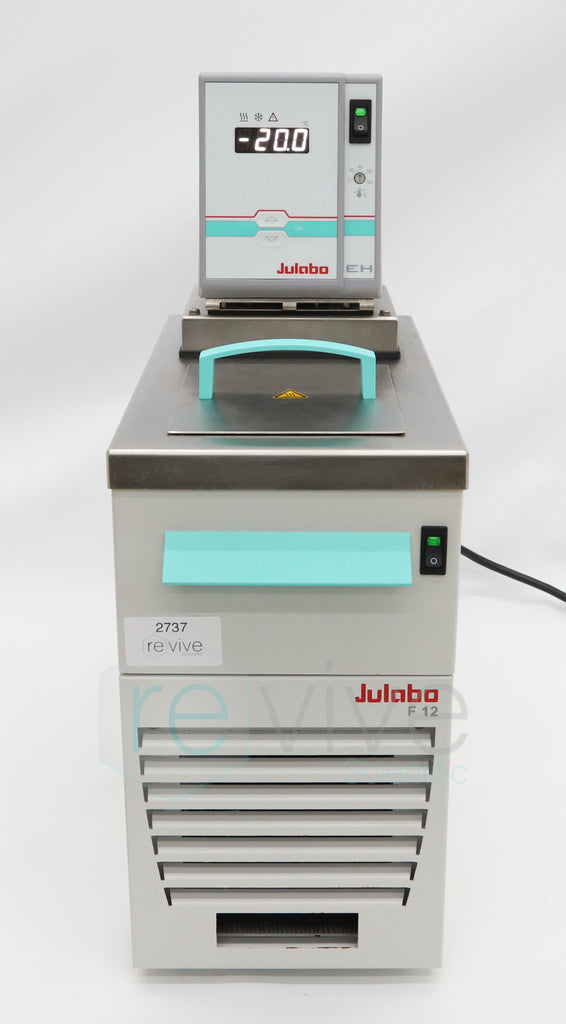

Julabo F12 EH Refrigerated Heated Circulating Water Bath

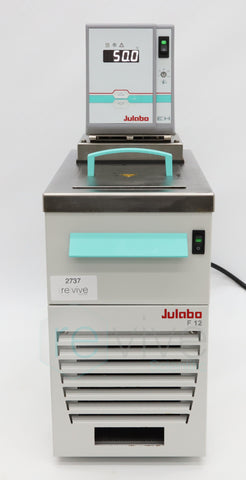

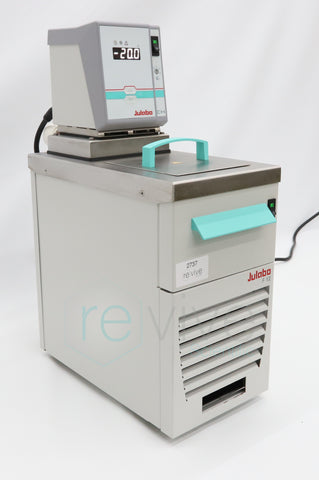

JULABO F12-EH Refrigerated/Heating Circulator
Condition: Refurbished; fully tested, inspected and verified.
Warranty: 60 Days
Includes:
- Julabo F12 Chiller Bath
- Julabo EH Circulator and Heater
- Bath Cover
- Power Cords
- User Manual
Product ID # 2737
Product Description

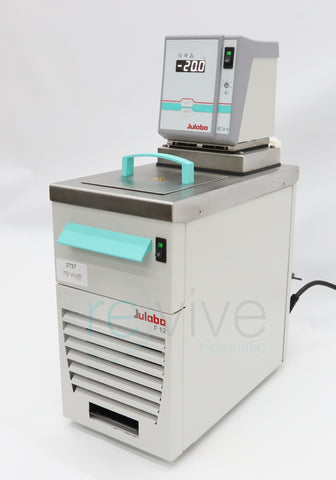

The JULABO F12-EH is a compact refrigerated and heating circulator designed for precise temperature control in laboratory and research applications. Featuring a temperature range of -20°C to +150°C, digital PID temperature control, and an integrated circulation pump, the F12-EH provides reliable heating and cooling for both internal bath and external circulation applications.

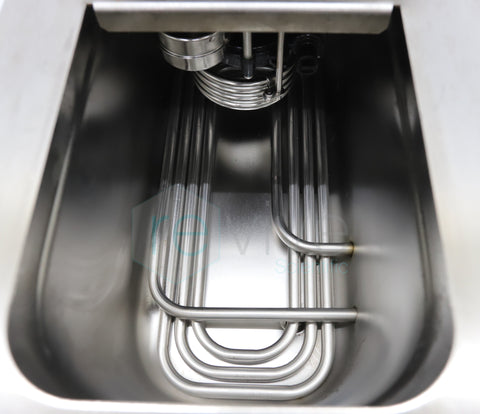

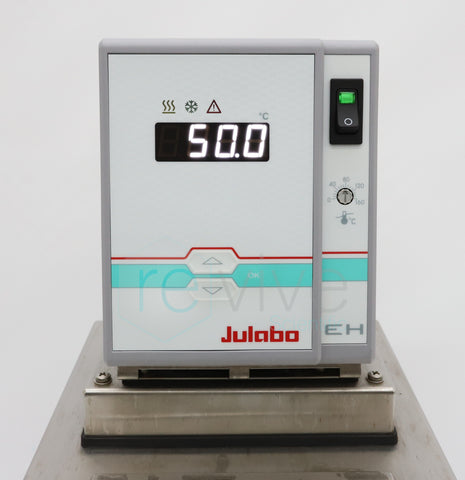

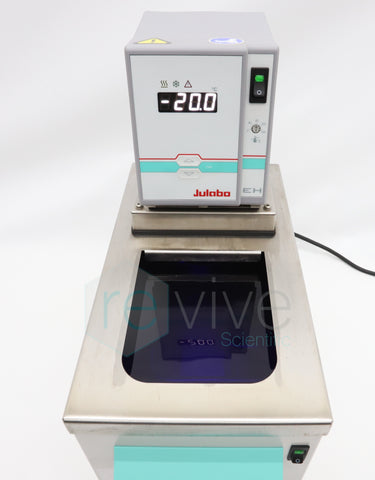

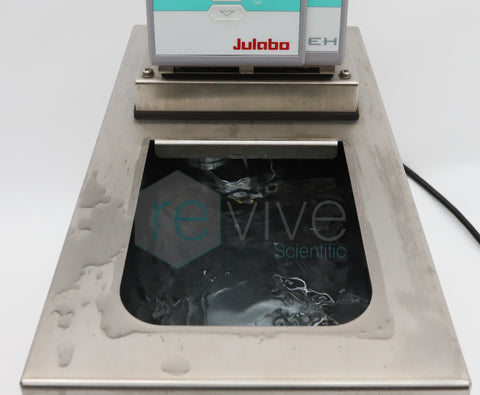

The unit features an LED temperature display, adjustable overtemperature protection, low-liquid-level safety protection, and a stainless steel bath reservoir.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | JULABO |
| Model | F12-EH |
| Part Number | 9118612 |
| Product Type | Refrigerated/Heating Circulator |
| Temperature Range | -20°C to +150°C |
| Temperature Stability | ±0.03°C |
| Temperature Resolution | 0.1°C |
| Heating Capacity | 1,000 W (115V) |
| Cooling Capacity at +20°C | 200 W |
| Cooling Capacity at 0°C | 120 W |
| Cooling Capacity at -20°C | 20 W |
| Pump Flow Rate | 15 L/min |
| Maximum Pump Pressure | 5.1 PSI (0.35 bar) |
| Bath Capacity | 4.5 L |

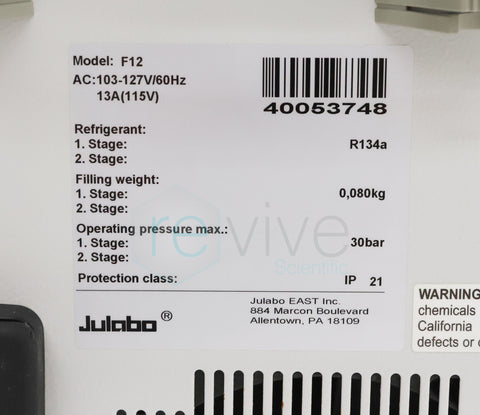

| Refrigerant | R134a |
| Temperature Controller | Digital PID |
| Display | LED |
| Power Requirements | 115V / 60Hz (US Version) |
| Dimensions (W × D × H) | 7.9 × 14.2 × 22 in |
| Weight | 48 lbs (22 kg) |
