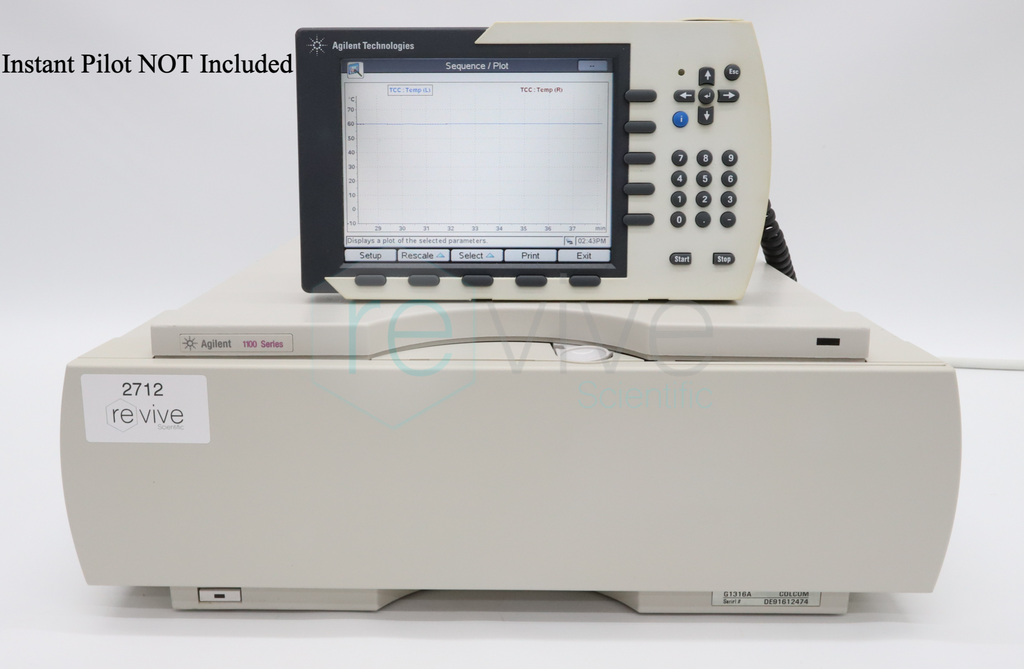

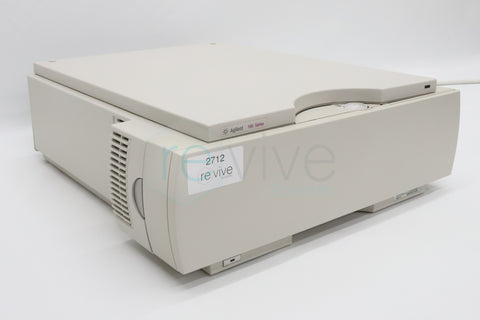

Agilent HP 1100 Series G1316A COLCOM Column Compartment
This Agilent HP 1100 Series G1316A COLCOM Column Compartment has been Refurbished, Fully Tested, Inspected and Verified to be in Great Working Condition.
Warranty: 60 Days

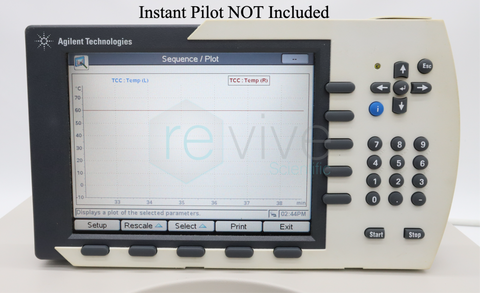

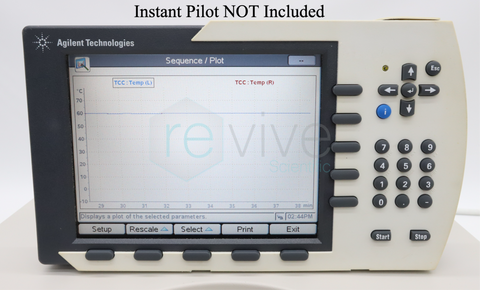

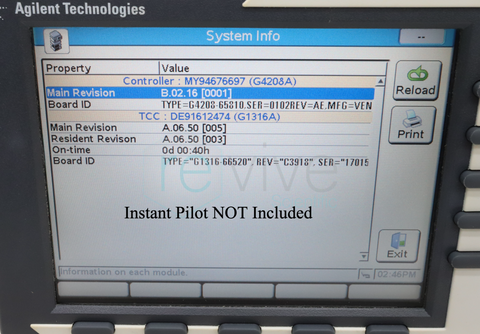

Includes: Agilent HP 1100 Series G1316A COLCOM Column Compartment, Power Cord & Cover. Agilent Instant Pilot NOT Included
Description

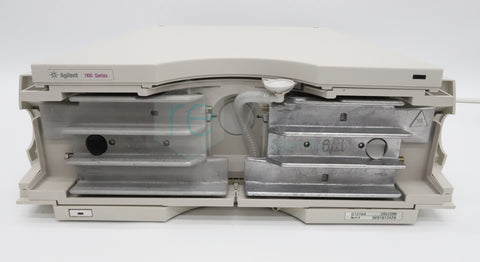

The Agilent HP 1100 Series G1316A COLCOM is a thermostatted HPLC column compartment designed to maintain consistent column temperature for reproducible retention times and separations. It uses two independently controlled heat exchangers for rapid heating and cooling, accommodates multiple columns, and may be equipped with an optional column-switching valve.
Specifications
- Temperature range: 10°C below ambient to 80°C
- Temperature stability: ±0.15°C
- Temperature accuracy: ±0.8°C; ±0.5°C after calibration
- Column capacity: Up to three 30 cm columns
- Warm-up time: Approximately 5 minutes from ambient to 40°C
- Cool-down time: Approximately 10 minutes from 40°C to 20°C
- Maximum flow at 80°C: 5 mL/min
- Heat-exchanger volume:
- Left: 3 µL
- Right: 6 µL
- Column identification: Electronic column-identification support
- Optional feature: Column-switching valve
- Dimensions: 410 × 435 × 140 mm (W × D × H)
- Weight: 10.2 kg (22.5 lb)
- Power: 100–120 or 220–240 VAC, 50/60 Hz
- Maximum consumption: 320 VA / 150 W
- Operating environment: 0–55°C

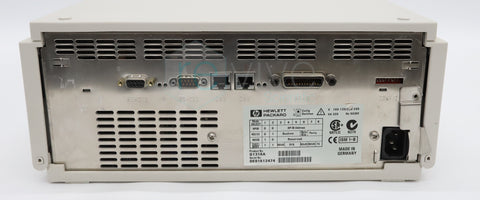

- Communications: CAN, GPIB, RS-232C and APG Remote; optional LAN
- Safety: Leak detection, safe leak handling, error diagnostics and pump-shutdown signal
Product ID # 2712
