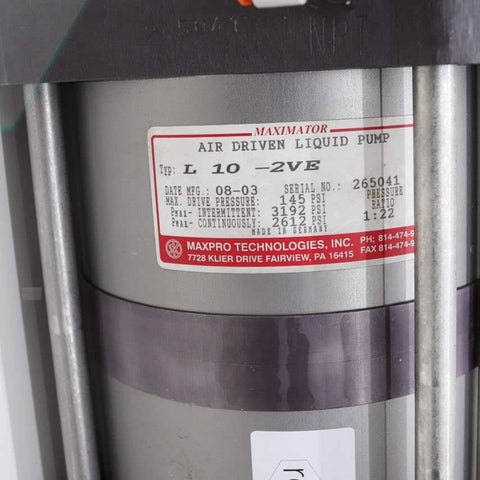

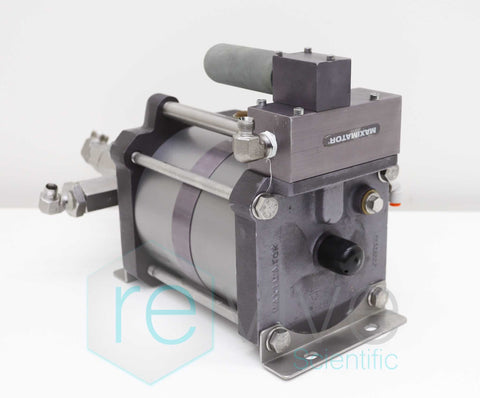

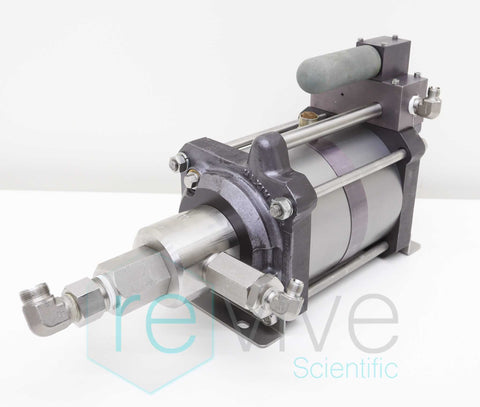

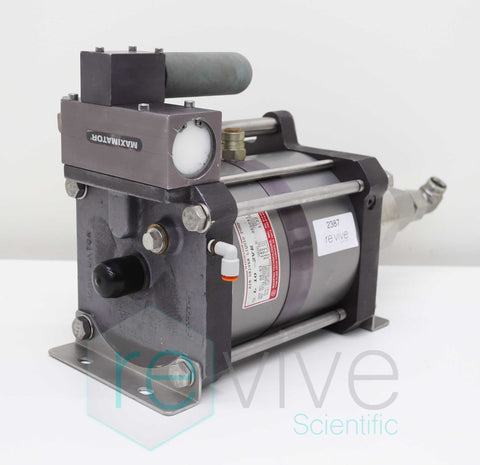

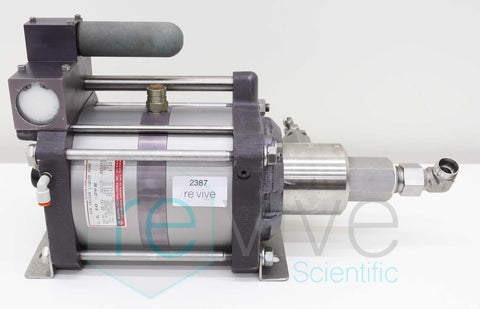

Maximator L10 2VE Air Driven High Pressure Pump

Maximator L10 2VE Air Driven High Pressure Pump

$1,595.00

This Maxpro Maximator L10-2VE has been fully tested, inspected and verified to be in great working condition.

60 Day Warranty!

Pump Type

Double Air Drive Head

Pressure Ratio

1:22

Maximum Outlet Pressure

3,190 psi

Displacement Per Cycle

5.49 in³

Inlet Connection

1 in

Outlet Connection

1/2 in

Weight

46 lb

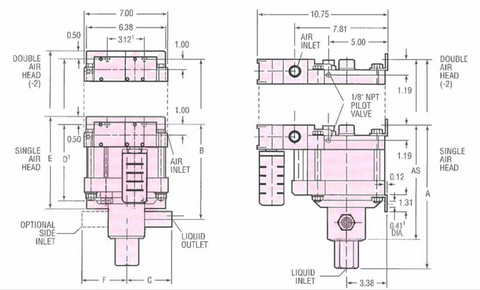

Dimension A

16.12 in

Dimension AS

13.63 in

Dimension B

12.13 in

Dimension C

3.88 in

Dimension D

10.81 in

Dimension E

11.81 in

Dimension F

4.38 in

Air Drive Pressure

15 to 145 psi

Body Material

Stainless Steel

Inlet Liquid Connection

1 in

Outlet Liquid Connection

1/2 in

Air Drive Pressure

15 to 145 psi

Features

  • Easy to install and operate

  • Pressure maintained without energy consumption

  • Explosion proof, no electrical power required

  • Pilot air control for remote operation standard on many models

  • External spool valve for quick maintenance on most models

  • Dry air spool valve option available for severe service applications

  • Chemical service pumps are standard with separation fitting

  • Optional seal materials, port connections, double acting, multiple air heads, single stroke, adjustable stroke, special pumps, just ask

  • L series pumps have stainless steel bodies and 17-4 plungers.

  • All L pumps have UHMWPE (Ultra-High Molecular Weight Polyethylene) seals and Fluorocarbon (FKM)2 O-rings (-VE), except as noted.

  • L series pumps come standard with a bottom or side inlet. For side inlet, add - S to catalog number.

  • Air drive pressure range is 15 -145 psi unless limited by outlet pressure.

  • Air drive inlet is 1/2" FNPT.

  • For air control option, add-ACP to catalog number.

  • All L pumps come with an unregulated pilot port, 1/8" FNPT, in the top cap. This feature provides more accurate pressure control and is an ideal location for control instrumentation.

  • All L pumps are available with a double air drive head. This doubles the pressure ratio of the pump, allowing the use of a lower ratio base pump, to provide higher flow rates. It is also used to achieve a given outlet pressure with less air drive pressure Add - 2 to the catalog number.

Product ID # 2387
