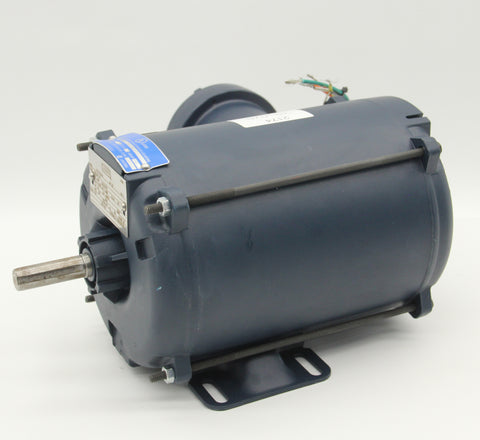

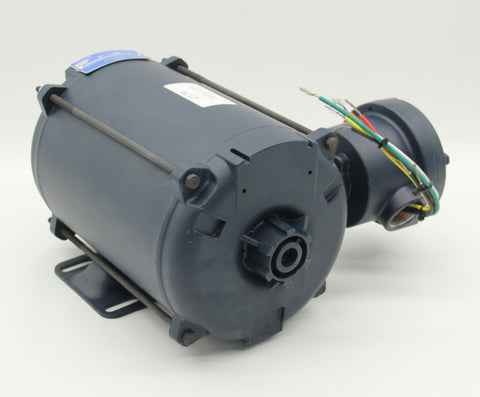

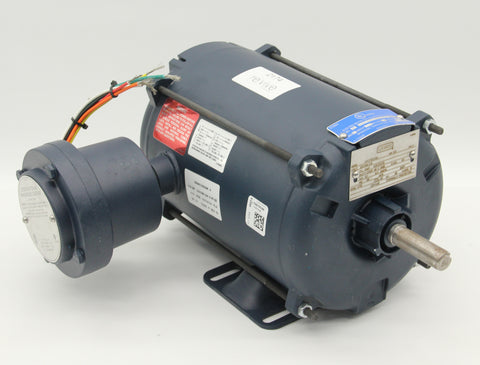

Leeson Electric Explosion Proof Motor 1/3 HP
This Leeson Electric motor is BRAND NEW without original packing. Includes 90 Day Warranty!

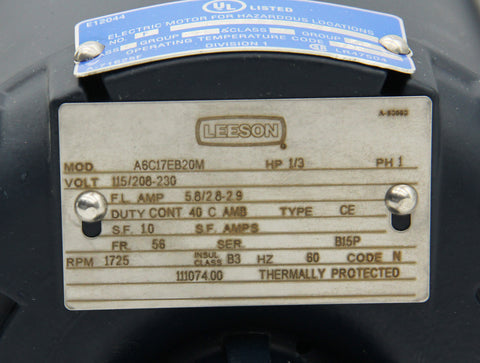

Model: A6C17EB20M

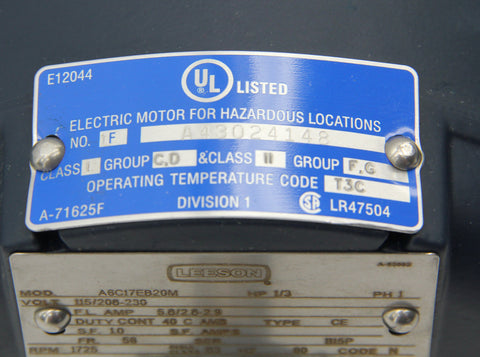

1 phase, 1800rpm, 115/208-230 V, 56 Frame, EPNV (Explosion Proof Non-Ventilated) Enclosure, 60 Hz
- Meets UL and CSA safety requirements
- Automatic overload protected

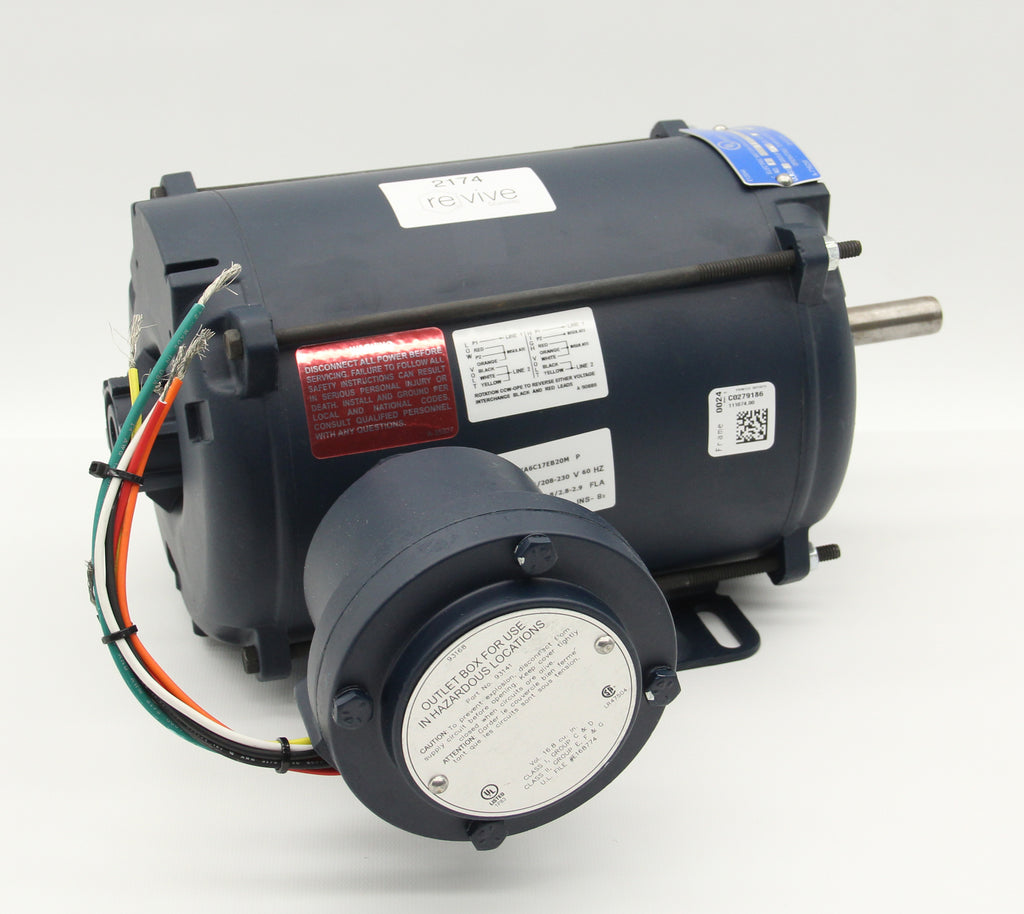

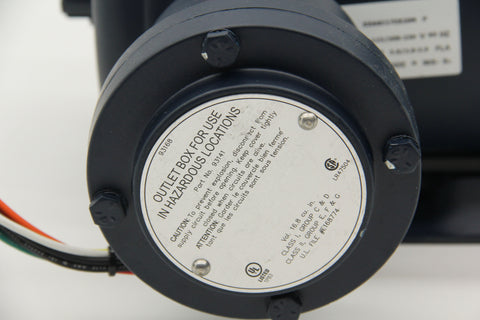

- Explosion rated conduit box included
- Internal mounted capacitors
- Double shielded ball bearings
- Meets temperature code T3B
| Motor Category | General Purpose Motor |
|---|---|
| Motor Phase | 1 ph |
| Motor Horsepower | 0.33 hp, 1/3 hp |
| Synchronous RPM | 1800 rpm |
| Motor Supply Voltage | 115/208-230 V |
| Frame Size | 56 |
| Enclosure Type | EPNV (Explosion Proof Non-Ventilated) |
| Frequency Rating | 60 Hz |
| Duty / Condition Type | Continuous Duty |
| Assembly/Box Mounting | F1 Only |
| Mounting Type | Rigid Base |
| Base RPM | 1725 rpm |
| Motor Orientation | Horizontal |
| Thermal Protection | Automatic |
| Full Load Current | 5.80 / 2.80–2.90 A |
| Full Load Efficiency | 66.00 % |
| Ambient Temperature Range | 40 °C |
| Electrical Type | Capacitor Start Induction Run |
| KVA Code | N |
| Motor Poles | 4-pole |
| Starting Method | Across the Line |
| Volts @ Frequency | 115/208-230 V @ 60 Hz |
| kW | 0.25 kW |

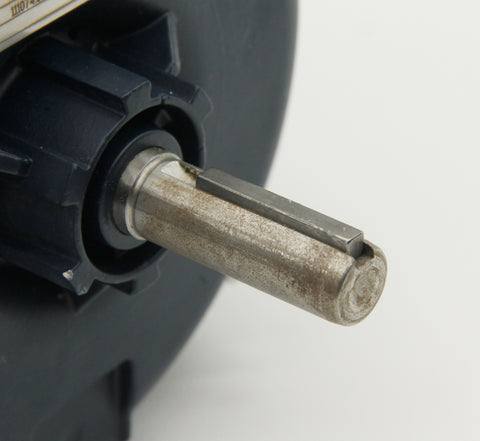

| Shaft Type | Standard 56 |
| Shaft Diameter | 0.63 in |
| Shaft Rotation | Selective Counterclockwise |
| Motor Length Less Shaft | 7.31 in |
| Overall Length (C-Dimension) | 12.97 in |
| Bearing Type | Ball Bearing |
| Drive End Bearing Size | 6203 |
| Opposite Drive End Bearing Size | 6203 |
| NEMA Design Class | N |
| Service Factor | 1.00 |
| Frame Material | Rolled Steel |
| Insulation Class | B |
| IP Rating | 54 |
| Standards Met | CSA, UL Recognized |
| Harmonization Code | 8501.40.4040 |
| Weight | 38 lbs |
Product ID # 2174
