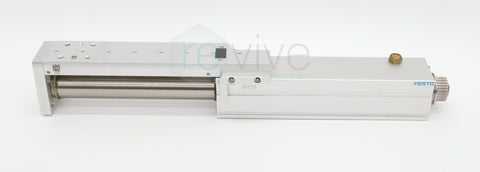

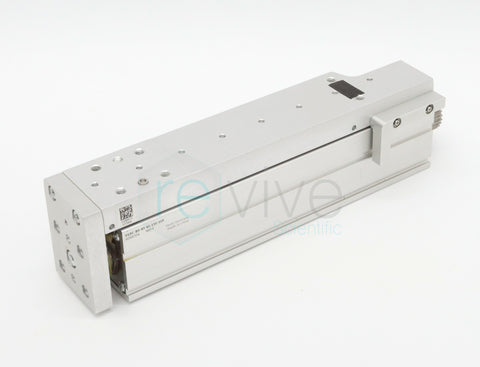

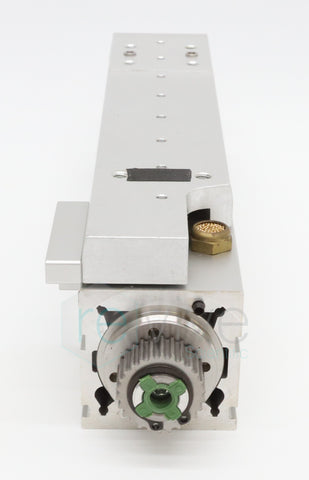

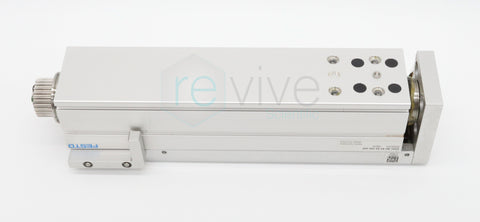

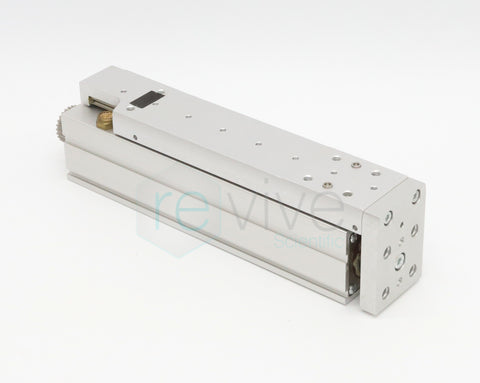

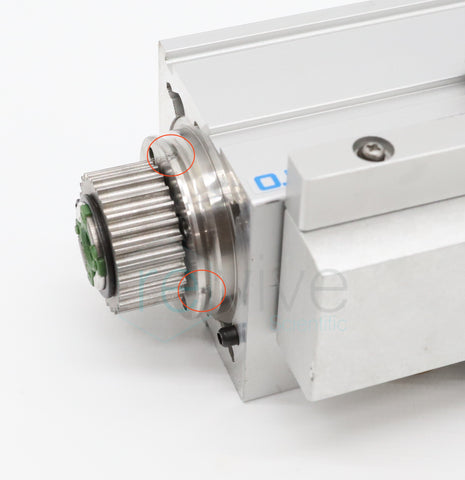

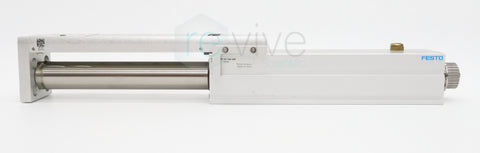

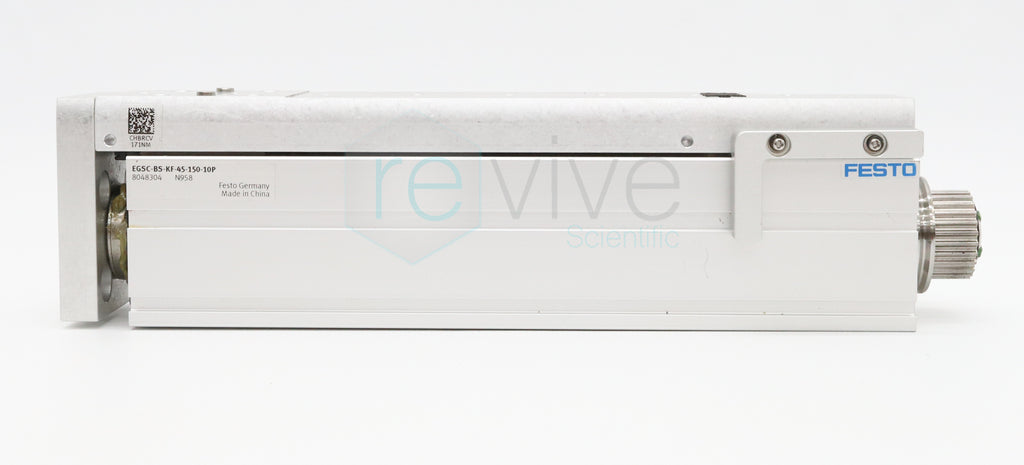

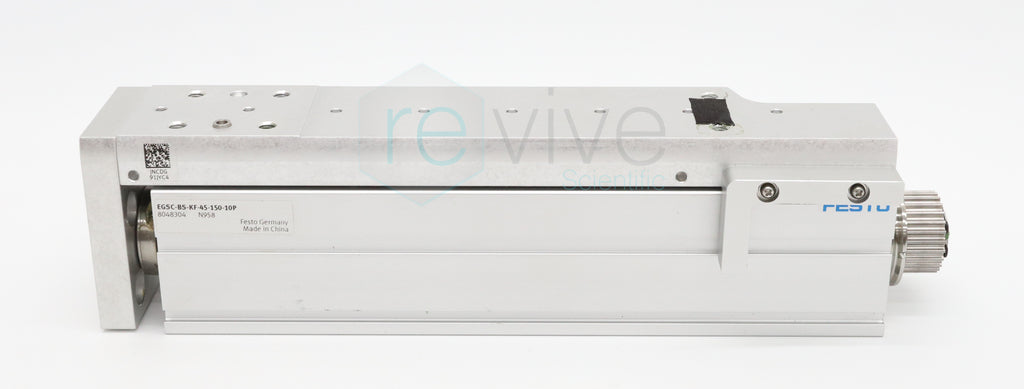

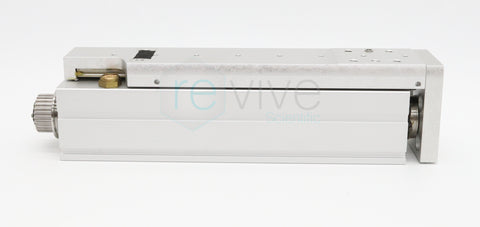

Festo EGSC-BS-KF-45-150-10P Mini Slide 8048304
This Festo EGSC BS KF 45 150 10P has been fully tested, inspected and verified to be in great working condition. It came from a prototype handler that was no longer needed.
Condition: Good, Working
Warranty: 60 Day Warranty!

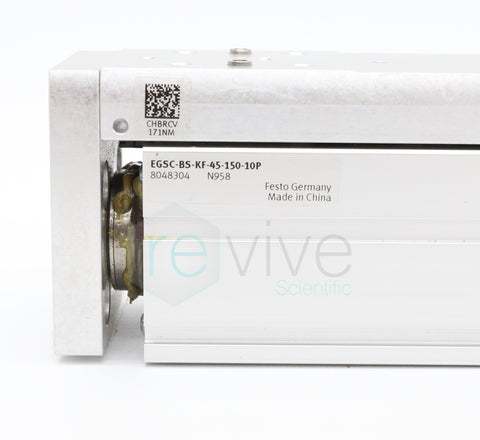

Model: EGSC BS KF 45 150 10P
Cat No: 8048304
The Festo EGSC-BS-KF-45-150-10P is a compact, precision electric linear actuator designed for automated positioning and motion control applications. Featuring a ball screw drive and recirculating ball bearing guide, this mini slide provides smooth, accurate, and reliable linear movement. Its compact design makes it ideal for laboratory automation, robotics, assembly systems, and industrial machinery.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Festo |
| Model | EGSC BS KF 45 150 10P |
| Part Number | 8048304 |
| Product Type | Electric Mini Slide / Linear Actuator |
| Drive Type | Ball Screw |
| Guide Type | Recirculating Ball Bearing |
| Stroke Length | 150 mm (5.91 in) |
| Frame Size | 45 |
| Spindle Pitch | 10 mm/revolution |
| Maximum Speed | 600 mm/s |
| Maximum Acceleration | 15 m/s² |
| Repeatability | ±0.015 mm |
| Maximum Feed Force | 120 N |
| Reference Payload | 12 kg (26.5 lbs) |
| Duty Cycle | 100% |
| Protection Rating | IP40 |
| Operating Temperature | 0°C to 50°C |
| Housing Material | Anodized Aluminum Alloy |
| Weight | 1.55 kg (3.42 lbs) |
Product ID # 2726
