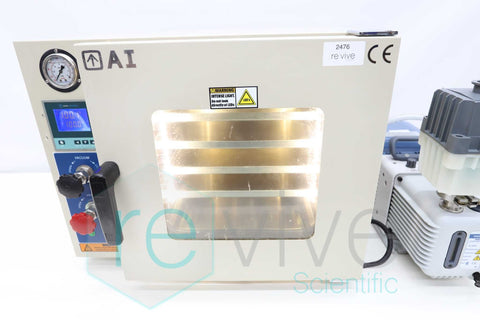

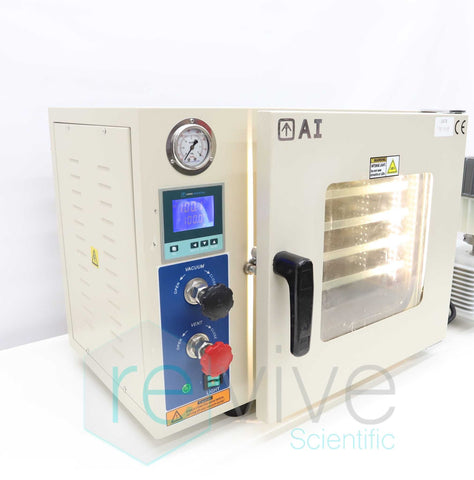

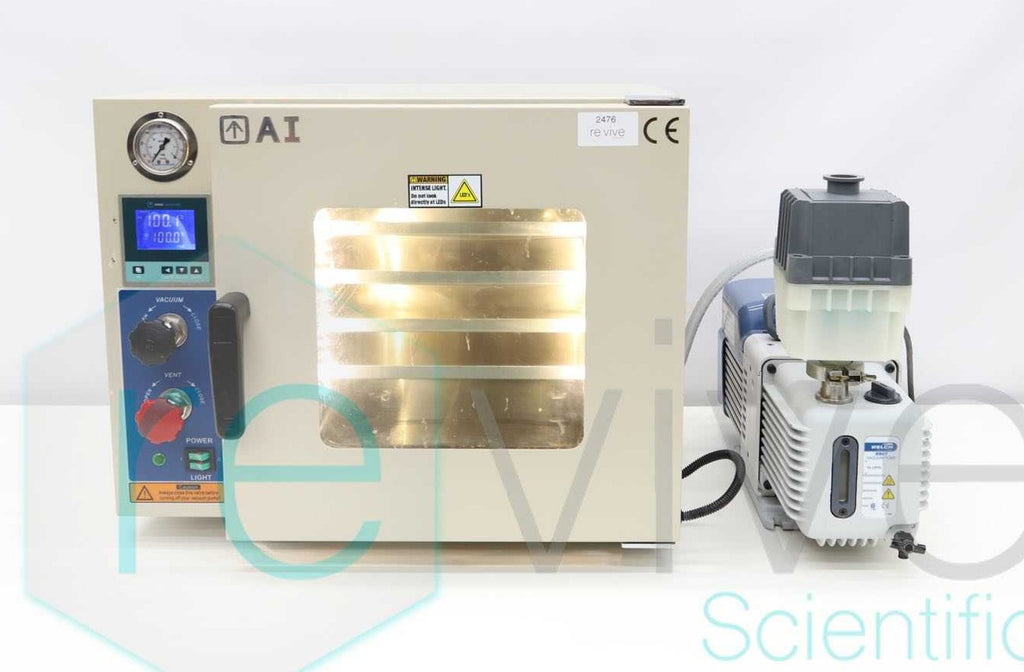

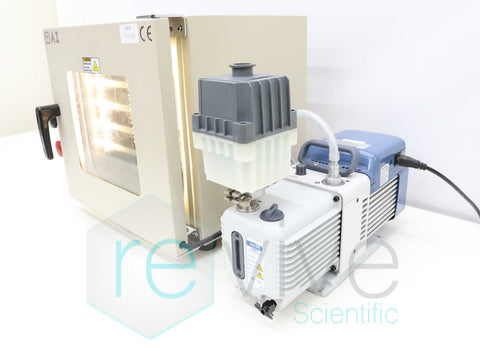

Across International AccuTemp 09w .9 CF  Vacuum Oven w/ Welch Pump

Across International AccuTemp 09w .9 CF Vacuum Oven w/ Welch Pump


This Across International Vacuum Pump has been fully cleaned, decontaminated, tested, inspected and verified to be in great working condition.

60 Day Warranty!

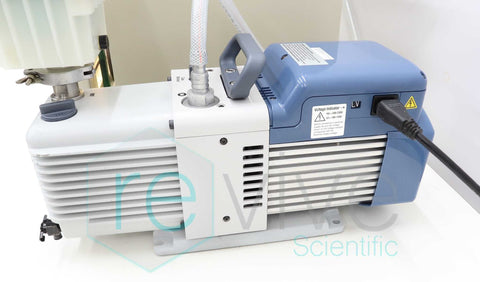

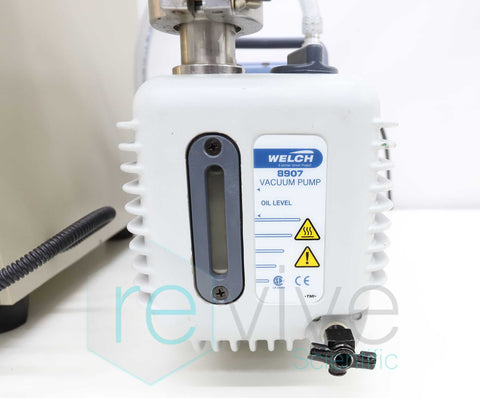

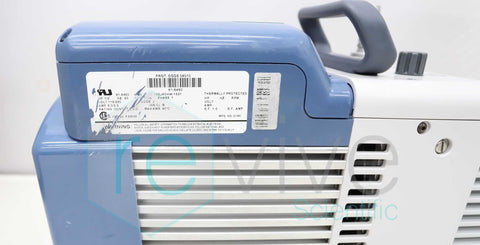

Includes: Across International Accutemp 09w, 4 Dry Shelves, Welch 8907 Vacuum Pump, Mist Catcher, Vacuum Hose, Both Power Cords & Vacuum Fittings.

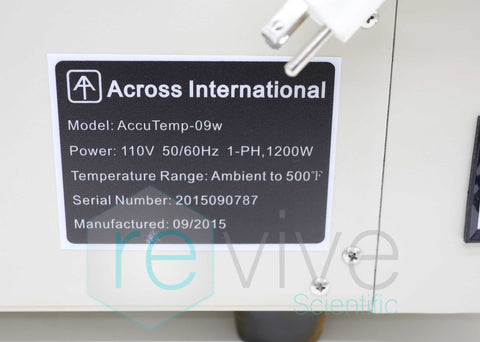

Model: AccuTemp-09w


 Electrical requirements
 110V +/-10% 60Hz 1-PH 13.6A, 1,200 watts
 Size: 12 x 12 x 11"
 Material: Stainless steel

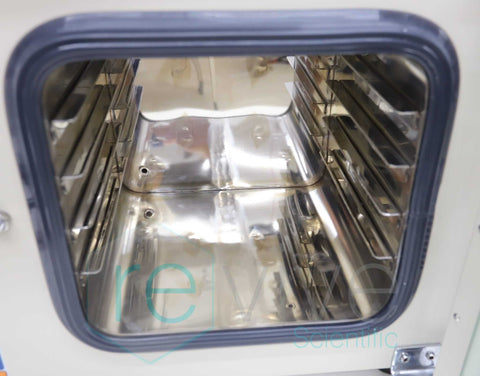

 Capacity: 0.9 cubic foot
 Heater  5-sided heating (left 350W, right 350W, top 220W, bottom 480W, back 100W)

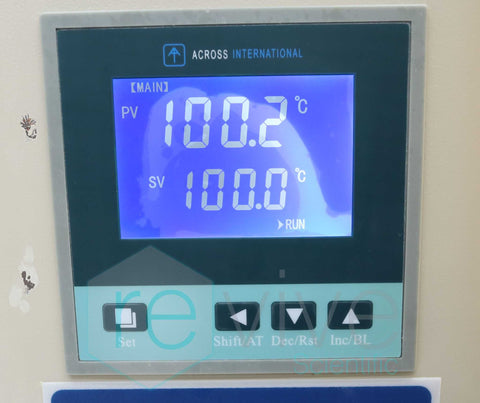

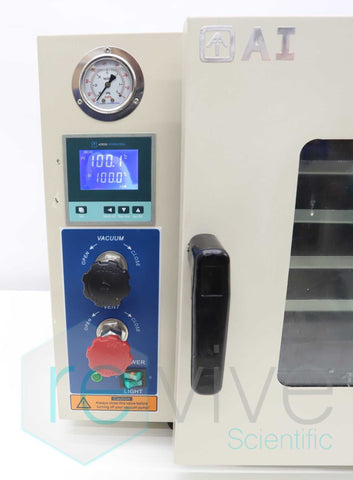

 Temperature control  Controller: low proportional gain, microcomputer PID controlled with LCD display
 Range: ambient to 260°C (or 500°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 5% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Ultimate vacuum level: better than 500 microns/millitorrs

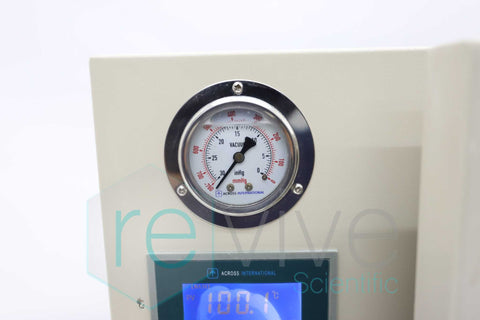

 Mechanical gauge range: 0 to 30 inch mercury

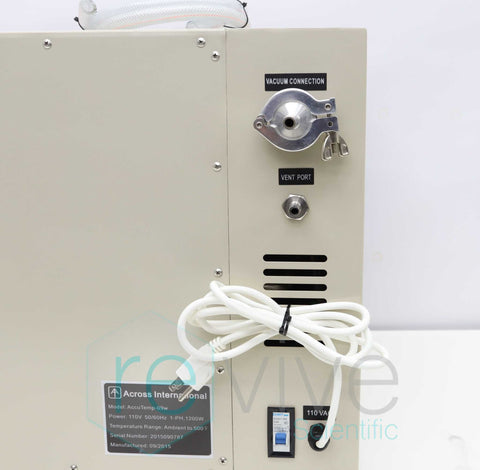

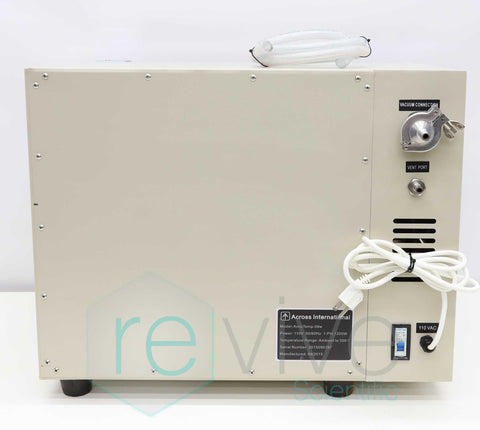

 Vacuum port: KF25 flange
 Vent port: KF25 flange
 Vacuum pump: INCLUDED
 Weight  Unit: 90 Lbs, shipping: 165 Lbs
 Dimensions (WxDxH)  Unit: 23.4 x 17.25 x 19"  With handle and vacuum port: 23.4 x 20 x 19"
 Shipping: 29 x 29 x 29"

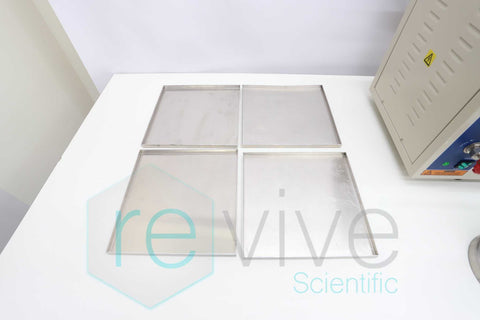

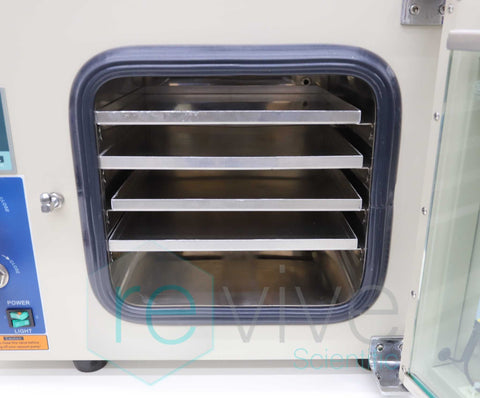

 Included with oven purchase: 4 aluminum slide-in shelves
 Capacity: 4 shelves max.
 Style: pan-shape
 Size: 11.5 x 11.25"
 Maximum area: 129.4 x 8 = 7 sq ft or 1035 inch2
 Distance between shelves: one inch
 Door gasket material  Silicone or Viton
 Observation window  1/2" tempered safety glass
 Built-in circuit breaker
 Overheat shutoff protection
 Secondary over-temp protection dial
 In-door lights  White LED


Product ID # 2476
