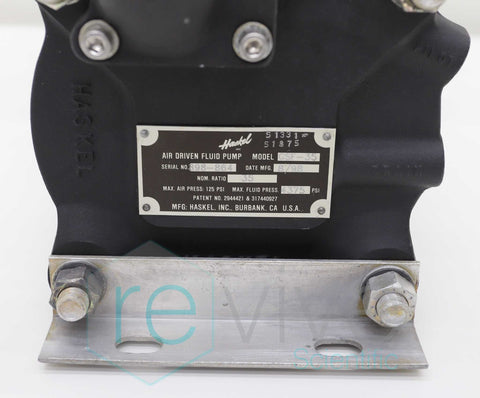

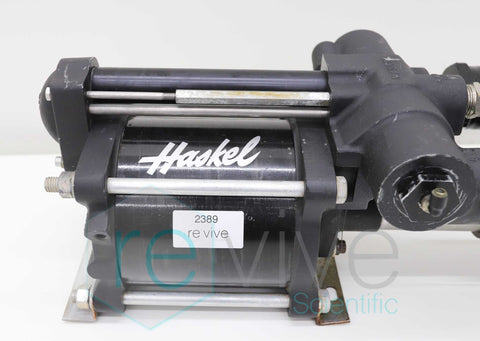

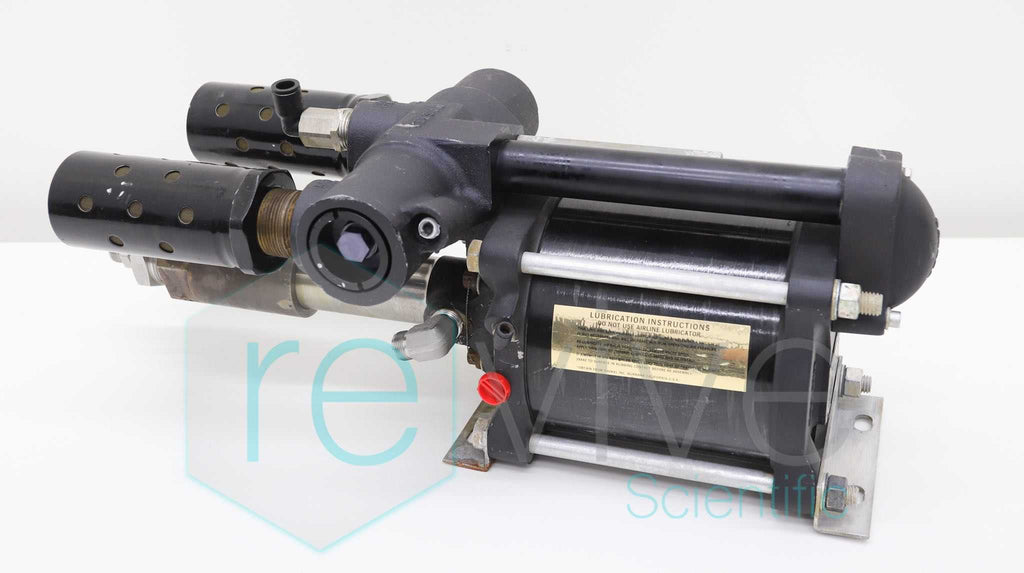

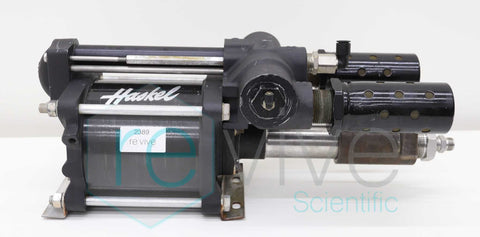

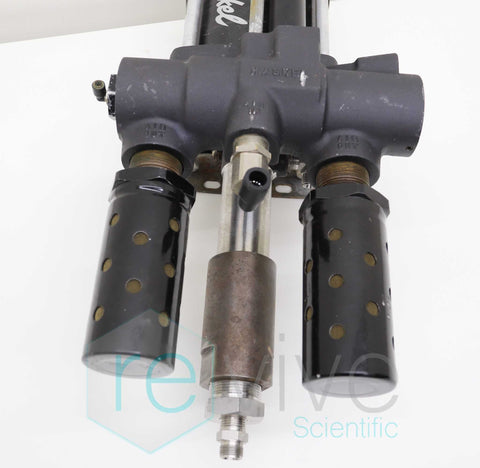

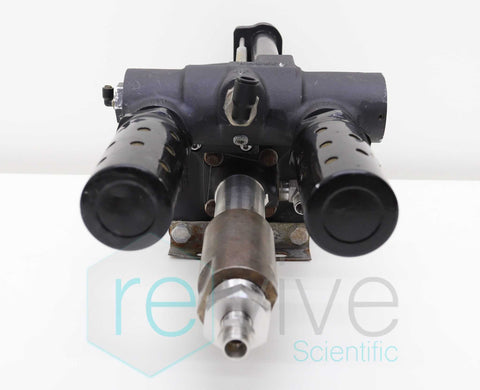

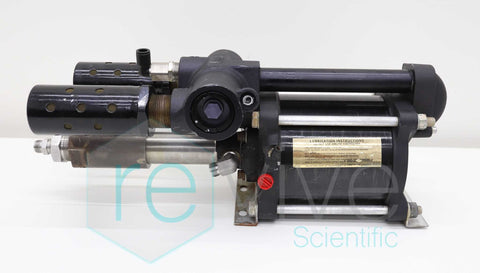

Haskel GSF-35 Air Driven Liquid Pump
This Haskel has been fully tested, inspected and verified to be in great working condition.
60 Day Warranty!
New Price: $5,600
Features
- All hydraulic fluids, water (plain or DI), solvents
- Drive pressure 3 to 125 psi (.2 to 9 bar)
- Single air head – double acting
- Choice of wetted materials
- Flow rates to 21 gpm (80 l/min)
- Output pressures to 10,000 psi (690 bar)
- Choice of 10 models, 4 ratios, 20 possible combinations
Tech Specifications
| Horsepower | 6 |
| Max Air Drive | 125 |
| Nominal Ratio | 35 |
| Actual Ratio | 40 |
| Max Continuous Pressure (PSI) | 4375 |
| Max Intermitten Pressure (PSI) | 4375 |
| Max CPM | 60 |
| Displacement (cu-in) | 6 |
| Inlet Port | 1-1/4" NPT X2 |
| Outlet Port | 1/2" NPT X2 |
Product ID # 2389
